WSY packing (Chinese Patent ZL93222843.7) is one of our patent products. It was developed on the base of mass transfer mechanism of tray. The mass and heat transfer of liquid and vapor takes place not only on the packing surface but also in the liquid layer on the packing. The flow path of liquid and vapor in WSY packing just like those in the traditional tray columns. It has high spreading factor in any direction and doesn't rely on the pre-distribution of liquid and vapor very much. So it can be scaled up confidently.

WSY packing is made of expanded metal. The normal types are WSY80 and WSY150.



Special features:

High number of theoretical stages per meter.

Middle liquid hold-up.

Not rely on the wetting properties of liquid.



Preferred applications:

For small overall height column.

Not easy wetting liquids.

Atmospheric pressure to overpressure.

Liquid phase controlled absorption.

WSY packing

Fig.1 WSY packing

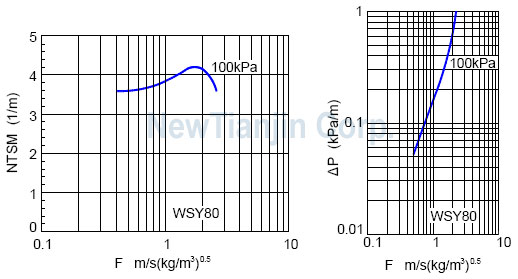

Feature curves of WSY packing
