TJH Packing (Pulse Corrugated metal plates packing) is an improved new type Corrugated metal plates packing. It's  made up of metal plates with thickness more than 0.1mm. The normal types are TJH255, TJH355, TJH555 and TJH705.

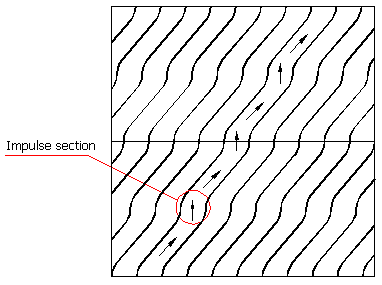

sketch of TJH packing



Special features:

Relatively high number of theoretical stages per meter

Low pressure drop per theoretical stage 0.3~1.0kpa

Liquid load 0.2~200m3/m2Ěh



Preferred applications:

Vacuum to overpressure

For large-scale production

Raising throughput on existing columns



It can enhanced up to 30% throughput compare with the normal Corrugated metal plate packing.

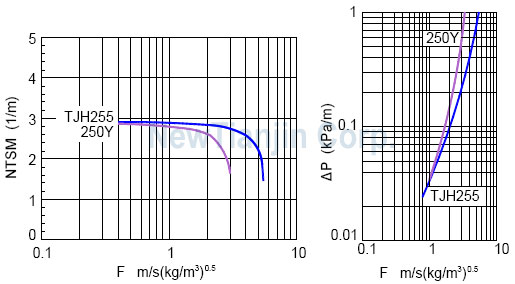

Feature curves of TJH255 packings



TJH255脉冲规整填料

TJH255脉冲规整填料

TJH脉冲规整填料片

TJH脉冲规整填料片

Ø300 TJH255 packing

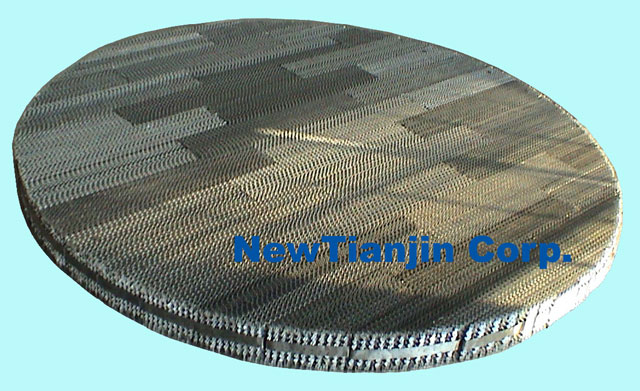

Ø3600 TJH255 packing

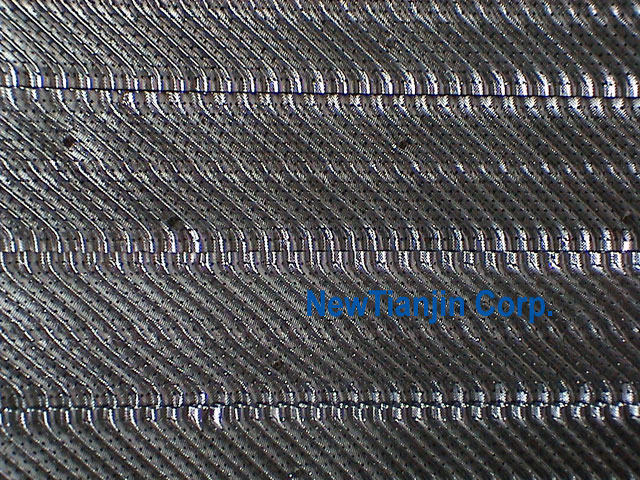

TJH type packing

TJH type packing



Structured packing ID13,000

Structured packing ID13,000

Structured packing ID13,000

Structured packing ID13,000
