TJCW Demister (Chinese Patent ZL 97113349.2) is one of our patent products. The working sketch of this new type demist is shown in Fig.1. It has been widely used in columns, evaporators, liquid-vapor separators, boilers, waste gas processing and compressor outlet for eliminating oil. It gets rid of the shortcomings of the traditional mist eliminators such as narrow operating range, low gas velocity, entrainment. Its operating range is about twice of traditional mist eliminators. The demisting efficiency of TJCW Demister is up to 100% for droplets of 5um or larger. According to the process, it can be installed in the existing equipment or made a standalone demister. The various TJCW demisters are listed below in Fig.2 and Fig.3.



Preferred applications:
To reduce loss of valuable products
To increase throughout capacity
To improve product purity
To protect compressors
To deal with condensates
To reduce downsream corrosion and fouling
To prevent air or water pollution

Features:
High efficiency, wide operation range, easy installing, low cost.

Fig.1 the working sketch of TJCW demister

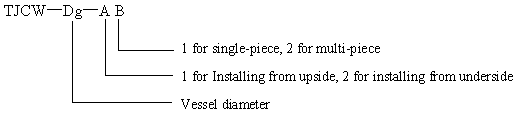

Type explanation:

For example: TJCW-2000-22 refers to a demister which diameter is 2 meter, separated in parts and installed from underside.

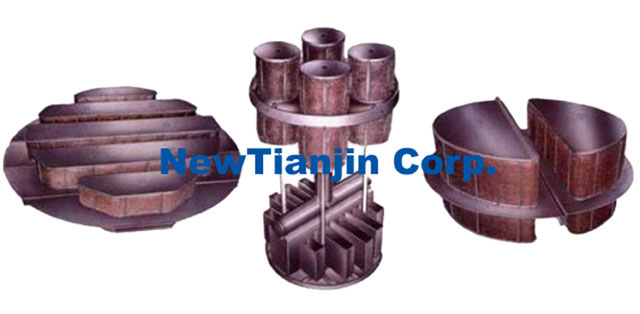

Fig.2 Various type TJCW demisters

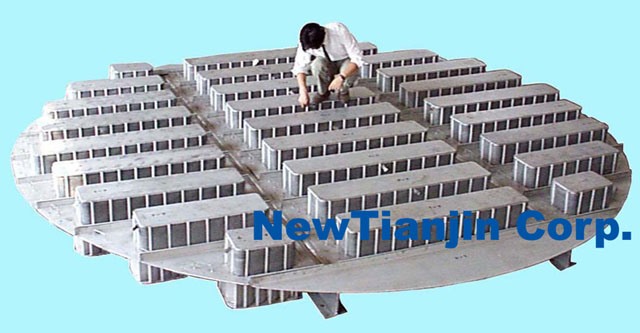

Fig.3 TJCW demister (5400 diameter)
